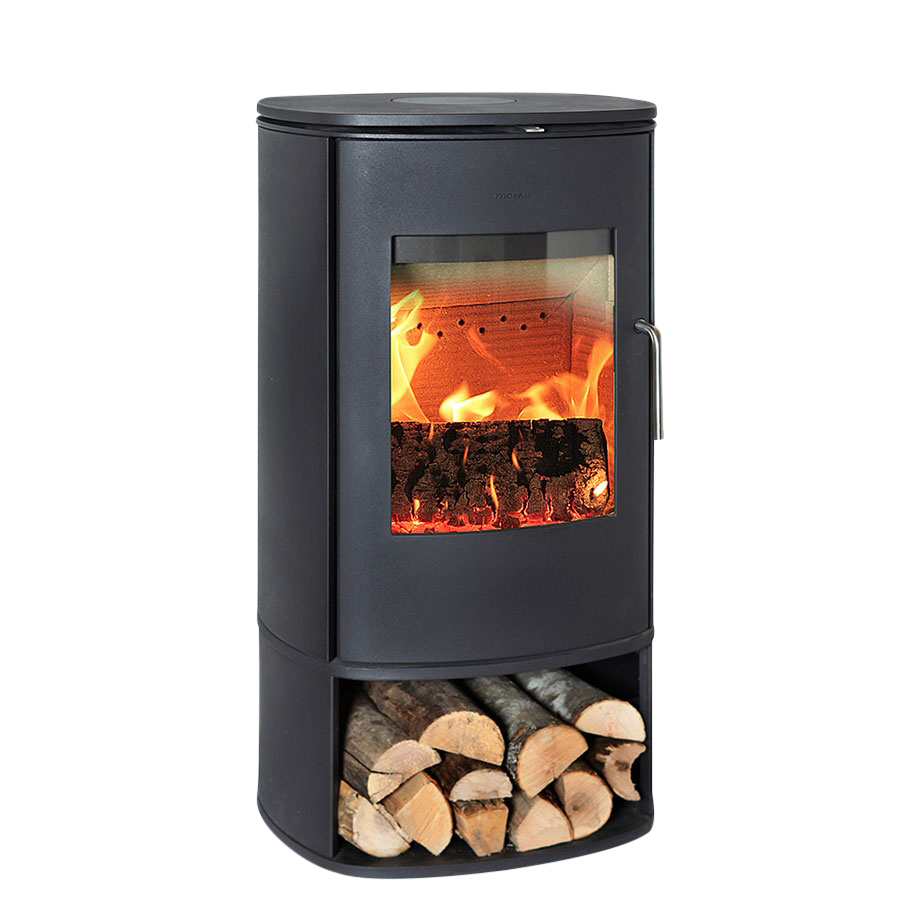

Morsø 8100 series

Morsø 8100 combines form and function in a design that makes the stove simple and logical to use. As a practical detail, the stainless steel handle is removable to always ensure a cool handle when opening the stove. The stove’s air inlet, and thus combustion and heat, are controlled by means of a single, discreet handle

The stoves are made of a select cast-iron quality of impressive strength that prevents buckling and ensures the stove remains airtight. The strong material is particularly suitable for emitting heat as it retains the heat for longer, producing an even and comfortable warmth.

Category:

Description

Technical details

• Convection System
• Airwash system
• Pre-heated combution air
• Pre-heated secondary air supply
• Tertiary Air
• Removable handle

Fuel
• Wood

Colors & Variants
• Black

Approvals
• EN/N
• DIN+/AT
• EPA



Rated output (kw) 6,3
Heat output range (kw) 3-8
Heats up (m2) 45-120
Height (mm)
Morsø 8140 569
Morsø 8142 1031
Morsø 8143 1031
Morsø 8148 1119
Morsø 8150 1042
Morsø 8190 1184
Width (mm) 530
Depth (mm) 450
Flue exit top fits to Ø 150
Flue exit rear fits to Ø 150
Weight (kg)
Morsø 8140 152
Morsø 8142 178
Morsø 8143 190
Morsø 8148 184
Morsø 8150 247
Morsø 8190 169
Fire chamber – width (cm)
Morsø 8140, 8142, 8143, 8148, 8190 33
Morsø 8150 35
Clearances to combustible materials, behind stove (mm) 150
Clearances to combustible materials, to the side (mm) 500
